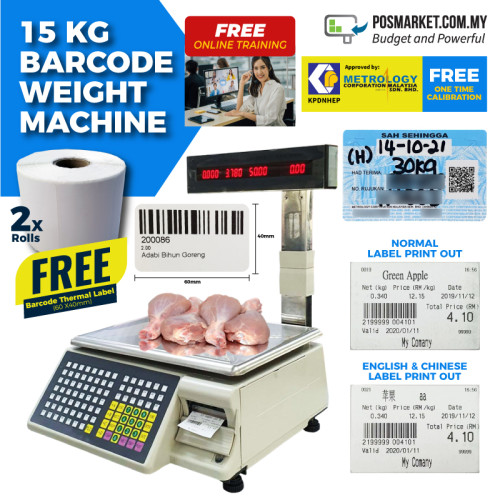

Electronic Weight Scales TM-Aa series have been approved by National Metrology Institute of Malaysia (NMIM) as suitable for commercial use. (Approval No. : ATS-0008-20)
Item Specifics:
Customizable: yes
Rated Load: 15kg
Accuracy: 5g/10g
Power Supply: 110/220V
Display Type: LED
Model Number: TM
Type: Barcode Printing Scale
Function: Printing
Application: Supermarket, fruit store
Place of Origin: Shanghai, China (Mainland)
Note: FREE ONE-TIME CALIBRATION. All our weighing scales are calibrated for FREE before delivery.
Function:
- Internal 4000PLU to set 31-71 fast button
- Optional RS232 or 485 interface, TCP/IP Interface
- Label format can be freely designed
- Able to store maximum of 16 label formats, each PLU can quote different label format in the 16 formats library
- Include label printing and continuing paper printing
- Powerful management software, high speed uploading and downloading
- Support various format of backup, text files transfer make it possible to work with other scales and software
- Friendly interface of the management software allows logical and reasonable operation
- Able to print inventory and report forms manually and automatically
- All function can be set from PC or on scale
- Able to set various forms of barcode
- English character ONLY
** Optional - Add On RM100 for English & Chinese Character Printout
Features:
Label size: 30mm-60mm
Capacity: 15kg
The speed of print: 1p/1s, 1p/2s, 1p/3s, 1p/4s, 1p/5s
Specifications
| Storage capacity | max. 4000 PLU |
| Various properties of PLU: | Max 3 lines of article name; max 3 lines of advertising information, POS code, unit price; max 4 discount period and discount rate, etc. |
| No. of shortcut keys: | 71 |
| Advertising information storage: | Can store max 22 pieces advertising information |
| Free text: | Can store 32 pieces free text |
| Resolution: | 3000 |
| Temperature: | Storage -10~+55°C; Working 0~+40°C |
| Humidity: | ≤85%RH |
| Power supply: | AC 220V, 50 HZ |
| Display mode: | Bright red LED |
| Digits: | Weight 5 digits, unit price 5 digits, total prices 7 digits |
| Printing width: | 30mm-60mm |
| Printing speed: | 75mm/s |
| Port: | RS232 (standard), Ethernet (option), Cash Drawer (Option) |
| Dimension | 381*428*500mm |
Warranty Period : 3 Months
** All power cord and adapter comes with 1 Month warranty from installation date.
** Warranty does not cover wear and tear, damages arisen from misuse or use not in accordance with product instructions.
Click here to view Weight Machine with Barcode Label Printer User's Manual
