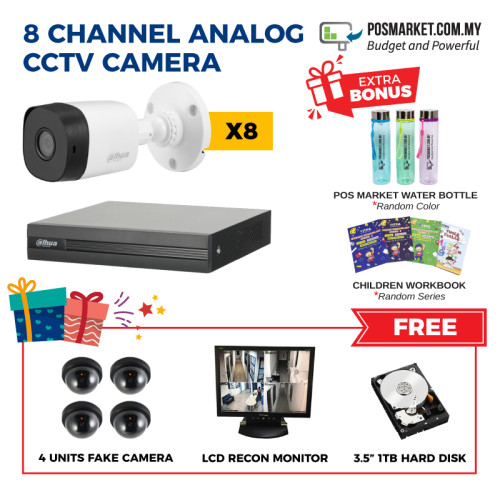

8CH Analog CCTV Complete Set
- Product Code: DH-HAC-B1A21-8
- Availability: In Stock
- FREE SHIPPING!
-
RM1,499.00
GET A FREE GIFT NOW!
POSMarket Water Bottle & Children Workbook
- WAREHOUSE IN MALAYSIA
- Free 1TB Hard Disk & LCD Recon Monitor
- FREE POSMarket Water Bottle + Children Workbook
- DH-HAC-B1A21 2MP HDCVI
- Max. 30fps@1080P
- HD and SD output switchable
- 3.6mm fixed lens (6mm optional)
- Max. IR length 20m, Smart IR
- IP67, DC12V
- H-XVR1B04/08H 4/8 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6/12 channels IP camera inputs, each channel up to 6MP
- Max 24/48Mbps incoming bandwidth
- The long transmission distance over coax cable
- Supports 1 SATA HDD, up to 6TB
- Smart Search and Intelligent Video System
Specification:
DH-HAC-B1A21 2MP HDCVI IR Bullet Camera
Camera | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.04Lux/F1.85, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 20m (66feet) |
| IR On/Off Control | Auto / Manual |
Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (6mm Optional) |
| Max Aperture F | F1.85 |
| Angle of View | H: 93° ( 54.7°) |
| Focus Control | N/A |
| Close Focus Distance | 800mm (2000mm) 31.50'' (78.74'') |
Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output 1 | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
Electrical | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 2.7W (12V DC, IR on) |
Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Startup should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
DH-XVR1B04/08H 4/8 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder
System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
Video and Audio | |
| Analog Camera Input | 4/8 Channel, BNC |
| Two-way Talk | Reuse audio in/out, RCA |
Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Multi-screen Display | When IP extension mode not enabled:4CH: 1/48CH: 1/4/8/9When IP extension mode enabled:4CH: 1/4/68CH: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record Rate | Main Stream:4CH: the 1st channel 5M-N(1~10fps);8CH: the 1st & 2nd channels 5M-N(1~10fps);other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)Sub stream:CIF/QCIF (1~15fps) |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM |
Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
Playback and Backup | |
| Sync Playback | 4CH: 1/48CH: 1/4/8 |
| Search Mode | Time /Date, Alarm, MD, and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Network | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
Storage | |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
| eSATA | N/A |
Auxiliary Interface | |
| USB | 2 USB 2.0 |
| RS232 | N/A |
| RS485 | N/A |
Electrical | |
| Power Supply | DC12V/1.5A |
| Power Consumption(Without HDD) | <10W |
Environmental | |
| Operating Conditions | 10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
Warranty Period : 3 Months
** All items come with 3 Months Warranty, except Recon Monitor & Hard Disk
** Warranty does not cover wear and tear, damages arisen from misuse or use not in accordance with product instructions.
We reserve the right to change the feature, function, price, and agreement without prior notice.
